Flue System VisionLINE AFS+

Insulated Air Flue System

Designed in Norway to meet the challenges of the Scandinavian environment, VisionLINE AFS+ offers on all the advantages of an insulated flue solution, including improved draw, up to 95% noise reduction, a full powder-coated finish and durable stainless steel & carbon construction. As an insulated flue system, it prevents heat loss by eliminating the need for room air to cool the flue, enhancing energy efficiency.

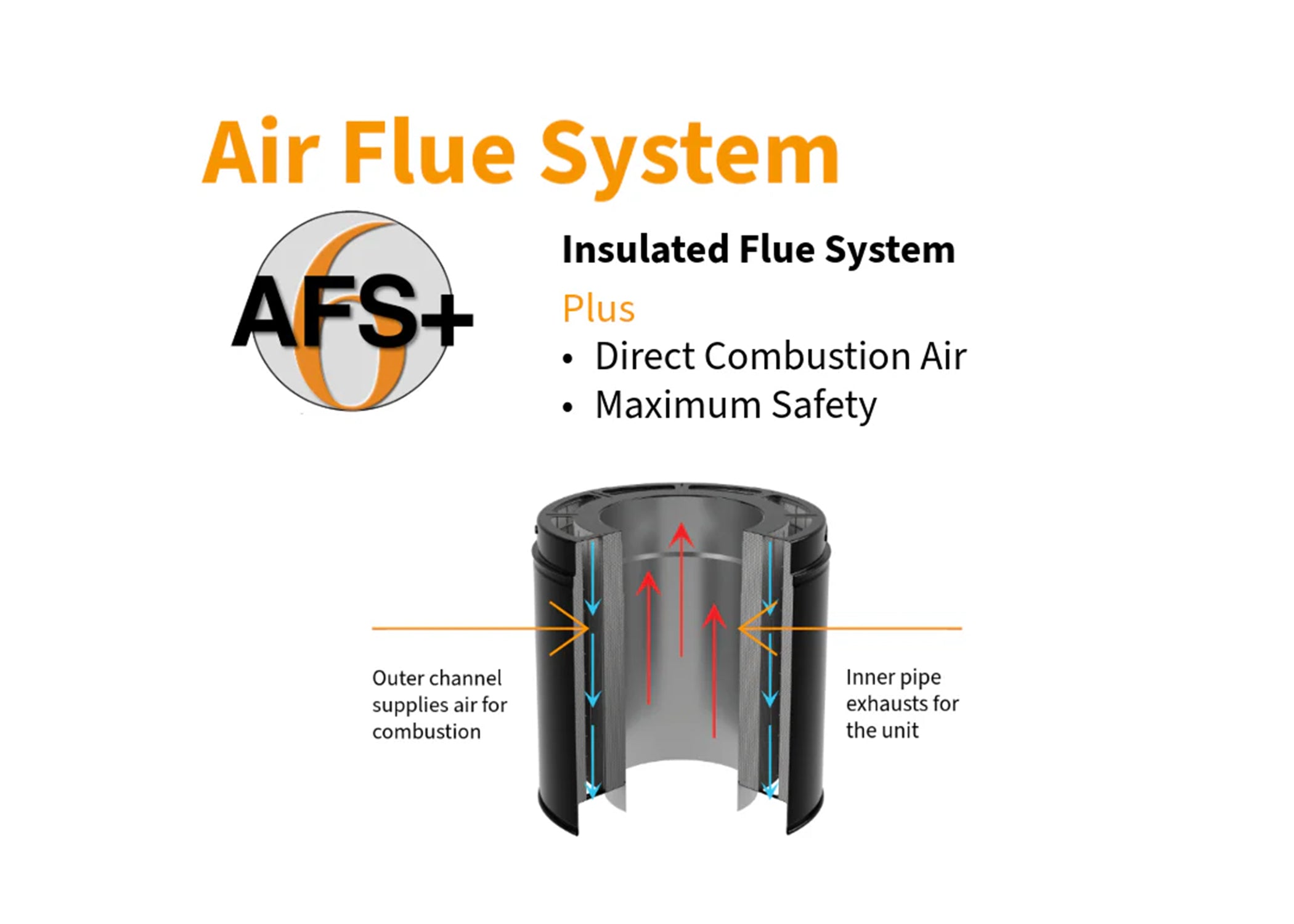

In addition, VisionLINE AFS+ features a unique coaxial design allowing it to draw combustion air from outside. The inner 150mm active flue pipe is wrapped in Morgan Ceramic insulation, while a 25mm air gap between the inner and outer pipes enables outside air to flow directly to the unit’s air intake, creating a balanced flue fireplace. By using outside air your appliance will ignite faster, heat more efficiently and burn longer.

VisionLINE AFS+ also includes EN/CE certified twist lock joints and Safety Vent componentry to enable passive construction compliance. The AFS+ system has been tensile, compression and wind tunnel tested allowing for up to 3 metres of unsupported flue from the ceiling brace.

This ultimate flue system is compliant for fitting to VisionLINE Taurus as well as other fireplace brands sold in New Zealand that have facility for connecting directly to outside air for combustion. For additional support, please speak with a technical specialist at The Fireplace.

To find out more, VisionLINE AFS+ Insulated Air Flue System
